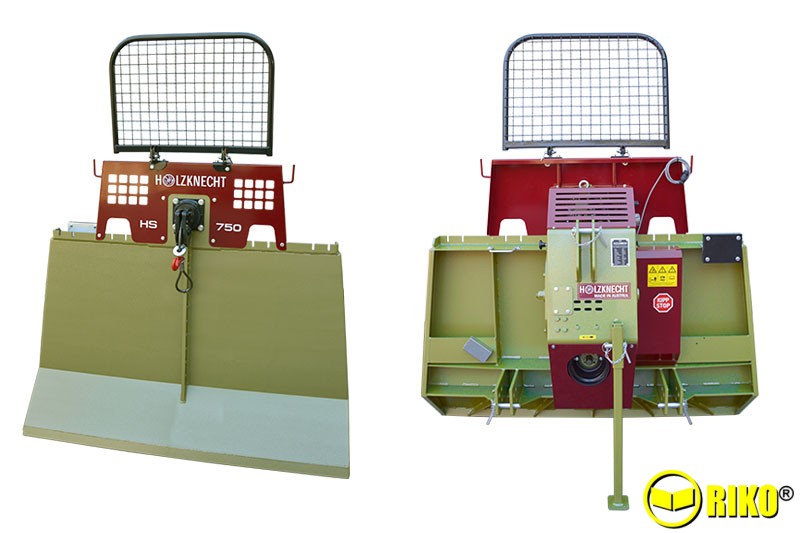

Riko HS750

Description

OPTIONAL HYD BUTT PLATE.

PTO driven 7.5 ton winch with electro hydraulic control, which comes as standard with both a hand held control with lead and full radio remote control.  The wicnh has a completely different design to our standard winches and provides numerous features for the professional forester.  Unlike our standard winches, which are driven by a PTO stub shaft with Sprocket, these winches have a steel gearbox that turns the drive 90 degrees to a double sprocket that drives a ‘duplex’ chain to the main drive clutch.   This design allows the drum to be located directly above the PTO drive shaft and means the drum is 90 degrees to the PTO drive line.  The hydraulic cable unwind system is situated just above the main drum.  Unlike the standard winches where a single outlet pulley is on top of the main winch body, these winches have a double outlet pulley on the front face of the main body.  The cable is sandwiched between two pulleys and the pair can rotate 360 degrees.  This overall design greatly reduces the distance from the cable drum to the outlet pulley which in turn greatly improves the winding of the cable onto the drum.

The hydraulic cable unwind system uses a more powerful hydraulic motor and crucially, the motor hydraulic unwind is fitted with a disc brake.  When the hydraulic cable unwind is not in use this disc brake keeps the cable taught between the drum and the outlet pulleys.   This is another feature that significantly reduces the likelihood of the cable tangling between the drum and the outlet pulleys.

Tractive performance 7,5 t
Cable retraction speed 26m / min
Cable capacities: 85m / 13mm Ø. 100m / 12mm.
Standard cable: 100m / 11mm.
Blade width 1900 mm.
Cable winch height with protective grille 2.300 mm.
Cable intake height 1300 mm
Weight 490 kg (no cable)'

Min tractor PTO power: 40 kW / 54hp

* Riko price match offer:  Riko UK Ltd promise to try and match or better, the price of any directly compatible product under the following conditions. Price match applies to European manufactured products only.   Proof of the competitor’s price must be provided to Riko UK Ltd by way of a copy of the competitors quotation showing the products full specification, the retail and offer price, that the product is brand new, unused, and is held in stock at the competitors UK premises at the time of the quotation.  The price match can only be applied prior to placing an order with Riko UK Ltd and cannot be applied retrospectively after an order has been placed or paid for in full.

Photo gallery
