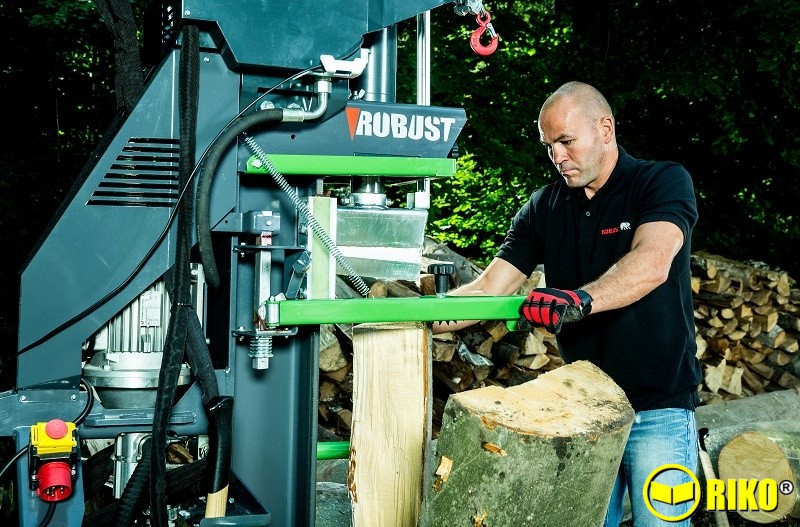

Robust R25 vertical Log Splitter

Description

25 ton professional log splitter.  Takes timber up to 1150mm long.  Long timber can be lifted from the ground to vertical for billeting using the timber lifter that is operated by the splitting ram.  Two speed splitting with auto-return.  The ram can also be stooped at any height and a simple push of the lever starts the auto return. An adjustable stop can be set to a lower height for 'short logs'.  Optional adjustable height table with removable table side table for placing part split logs on.  Optional 4 way splitting knife. Optional hydraulic winch with remote control.

Tractor PTO or 3 phase Electric or combination PTO and 3 phase.

Basic information and equipment

• Robust construction
• Premium cast iron pump
• Maxispeed – automatic speed adjustment
• Extended cylinder stroke
• Splitting blade stroke adjustment
• Lifting bow for lifting heavier workpieces
• Lifting bow ratchet
• Left bow for securing the workpiece
• Movable lever for securing the workpiece during operation
• Control lever for two-handed activation
• High-quality hydraulic components
• Welded reservoir with an oil drain plug
• Submersible filter
• Oil level indicator

Photo gallery
